Demo Database

Starting with OrientDB v.3.0 a new demo database is included.

This page (which is still a work in progress) lists some of the queries that is possible to execute on the new demo database.

Data Model

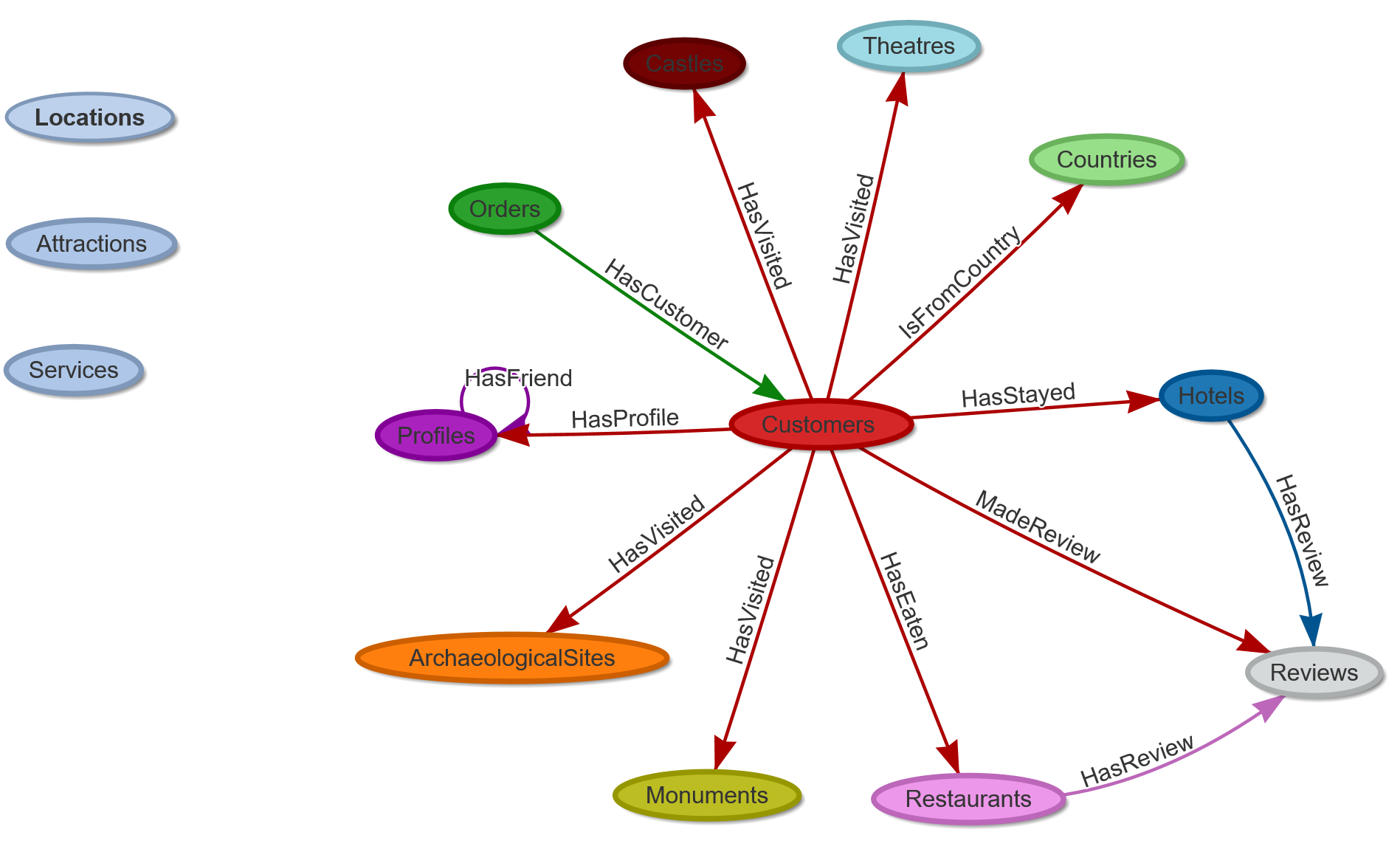

Data model is reported in the image below:

Inheritance

Inheritance in the vertex classes:

Locations
  - Attractions
    -- ArchaeologicalSites
    -- Castles
    -- Monuments
    -- Theatres
  - Services
    -- Hotels
    -- Restaurants

Queries

LOCATIONS

Example 1

Find all Attractions connected with Customer with OrderedId 1

MATCH {class: Customers, as: customer, where: (OrderedId=1)}--{Class: Attractions}
RETURN $pathelements

Example 2

Find all Services connected with Customer with OrderedId 1

MATCH {class: Customers, as: customer, where: (OrderedId=1)}--{Class: Services}
RETURN $pathelements

Example 3

Find all Locations visited by Customer with OrderedId 1

MATCH {as: n}<-HasVisited-{class: Customers, as: customer, where: (OrderedId=1)}
RETURN $pathelements

Example 4

Find all Locations visited by Profile2 friends

MATCH {Class: Profiles, as: profile, where: (Id=2)}-HasFriend->{Class: Profiles, as: friend}<-HasProfile-{Class: Customers, as: customer}-HasVisited->{Class: Attractions, as: attraction}
RETURN attraction.Name

REVIEWS

Example 1

Find all reviewed Services

MATCH {class: Services, as: s}-HasReview->{class: Reviews, as: r}
RETURN $pathelements

Example 2

Find all reviewed Services and the Customer who made the review

MATCH {class: Services, as: s}-HasReview->{class: Reviews, as: r}<-MadeReview-{class: Customers, as: c}
RETURN $pathelements

Example 3

Find the numbers of reviews per Service

SELECT *, out("HasReview").size() AS ReviewNumbers FROM `Services` ORDER BY ReviewNumbers DESC

Example 4

Find the 3 Places that have most reviews

SELECT *, out("HasReview").size() AS ReviewNumbers FROM `Services` ORDER BY ReviewNumbers DESC LIMIT 3

Example 5

Find the 3 Hotels that have most reviews

SELECT *, out("HasReview").size() AS ReviewNumbers FROM `Hotels` ORDER BY ReviewNumbers DESC LIMIT 3

Example 6

Find the 3 Restaurants that have most reviews

SELECT *, out("HasReview").size() AS ReviewNumbers FROM `Restaurants` ORDER BY ReviewNumbers DESC LIMIT 3

HOTELS

Example 1

Find the 3 Hotels that have been booked most times

SELECT *, in("HasStayed").size() AS NumberOfBookings FROM Hotels ORDER BY NumberOfBookings DESC LIMIT 3

CUSTOMERS

Example 1

Find everything that is connected (1st degree) to Customer with Id 1

MATCH {class: Customers, as: c, where: (OrderedId=1)}--{as: n} RETURN $pathelements

Example 2

Find all Orders placed by Customer with Id 1

MATCH {class: Customers, as: c, where: (OrderedId=1)}<-HasCustomer-{class: Orders, as: o}
RETURN $pathelements

Example 3

Find the 3 Customers who placed most Orders

SELECT *, in("HasCustomer").size() AS NumberOfOrders FROM Customers ORDER BY NumberOfOrders DESC LIMIT 3

Example 4

Find all Locations connected to Customer with Id 1

MATCH {class: Customers, as: customer, where: (OrderedId=1)}--{Class: Locations}
RETURN $pathelements

Example 5

Find all Locations connected to Customer with Id 2, and their Reviews (if any)

MATCH {class: Customers, as: c, where: (OrderedId=2)}--{class: Locations, as: loc}-HasReview-{class: Reviews, as: r, optional: true}
RETURN $pathelements

Example 6

Find the other Customers that visited the Locations visited by Customer with Id 1

MATCH {class: Customers, as: c, where: (OrderedId=1)}--{class: Locations, as: loc}--{class: Customers, as: otherCustomers, where: (OrderedId<>1)}
RETURN otherCustomers.OrderedId, loc.Name, loc.Type

Example 7

Same as before, but now returns also their Profile names, surnames and emails

MATCH {class: Customers, as: c, where: (OrderedId=1)}--{class: Locations, as: loc}--{class: Customers, as: otherCustomers, where: (OrderedId<>1)}-HasProfile->{class: Profiles, as: profile}
RETURN otherCustomers.OrderedId, loc.Name, loc.Type, profile.Name, profile.Surname, profile.Email

Example 8

Find all the places where Customer with Id 1 has stayed

MATCH {as: n}<-HasStayed-{class: Customers, as: c, where: (OrderedId=1)}
RETURN $pathelements

Example 9

Find all places where Customer with Id 1 has eaten

MATCH {as: n}-HasEaten-{class: Customers, as: c, where: (OrderedId=1)}
RETURN $pathelements

Example 10

Find the top 3 nationality of the tourists that eaten at Restaurant with Id 13

SELECT Name, count(*) as CountryCount FROM (SELECT expand(out('IsFromCountry')) AS countries FROM ( SELECT expand(in("HasEaten")) AS customers FROM Restaurants WHERE Id='13' UNWIND customers) unwind countries) GROUP BY Name ORDER BY CountryCount DESC LIMIT 3

RECOMMENDATIONS

Example 1

Recommend some friends to Profile with Id 1 (friends of friends)

MATCH {class: Profiles, as: profile, where: (Id=1)}.both('HasFriend').both('HasFriend'){as: friendOfFriend, where: ($matched.profile != $currentMatch)}
RETURN profile, friendOfFriend

Example 2

Recommend some Hotels to Customer with OrderedId 1

MATCH
  {Class: Customers, as: customer, where: (OrderedId=1)}-HasProfile->{class: Profiles, as: profile},
  {as: profile}-HasFriend->{class: Profiles, as: friend},
  {as: friend}<-HasProfile-{Class: Customers, as: customerFriend},
  {as: customerFriend}-HasStayed->{Class: Hotels, as: hotel},
  {as: customerFriend}-MadeReview->{Class: Reviews, as: review},
  {as: hotel}-HasReview->{as: review}
RETURN $pathelements

To filter additionally, and suggest only the 4 and 5-rated hotels, it is possible to add a filter condition on the 'HasReview' edge (property 'Stars'):

MATCH
  {Class: Customers, as: customer, where: (OrderedId=1)}-HasProfile->{class: Profiles, as: profile},
  {as: profile}-HasFriend->{class: Profiles, as: friend},
  {as: friend}<-HasProfile-{Class: Customers, as: customerFriend},
  {as: customerFriend}-HasStayed->{Class: Hotels, as: hotel},
  {as: customerFriend}-MadeReview->{Class: Reviews, as: review},
  {as: hotel}.outE('HasReview'){as: ReviewStars, where: (Stars>3)}.inV(){as: review}
RETURN hotel, ReviewStars.Stars
